Description
Our Temperature Sensor Module provides precise thermal monitoring capabilities for battery research, complementing our Pouch Cell Holder with critical temperature data during electrochemical testing. The module features two Type K thermocouples enabling simultaneous monitoring of multiple points on the cell surface or comparison between cell and ambient temperatures. The integrated signal conditioner ensures stable, noise-free data transmission with fast response times essential for detecting rapid thermal events and temperature gradients during testing.
USB-PC connectivity enables seamless integration with existing test setups, providing real-time temperature logging and visualization through included Omnisense software. This allows synchronized data collection with other measurement parameters, creating comprehensive datasets that combine thermal, displacement, and force data for complete battery characterization. Particularly valuable for thermal safety studies, performance optimization, and understanding temperature effects on capacity and aging mechanisms across different battery chemistries.
Specification
- Sensor type: Type K thermocouples (2x)
- Thermocouple temperature range: -75°C to +260°C
- Accuracy: ±1°C / 1%
- Sensitivity: ±0.1°C
- Response time: <1 second

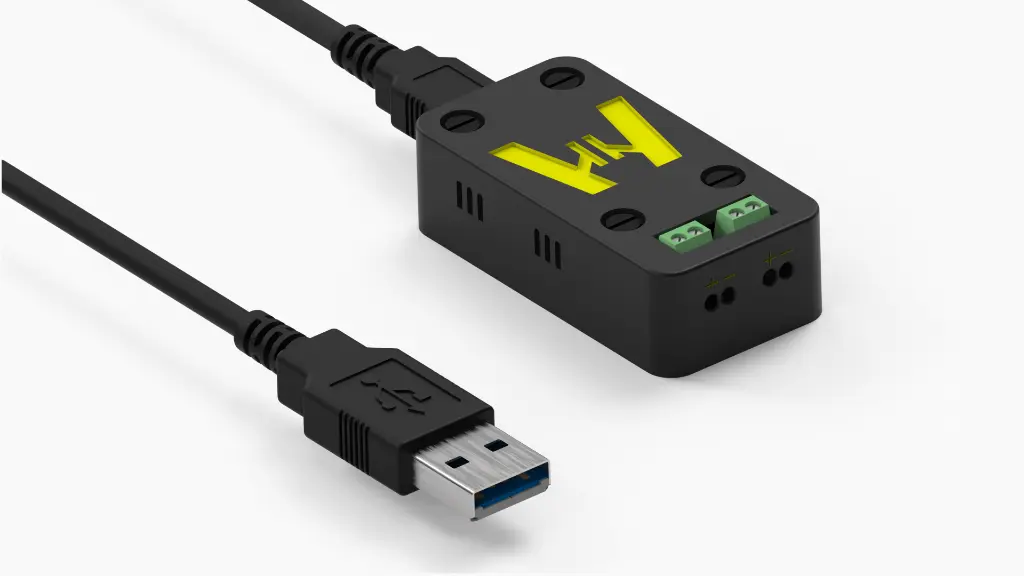

- Output: USB-PC connection
- Operating environment: 5 to +40°C (module electronics)
What's included

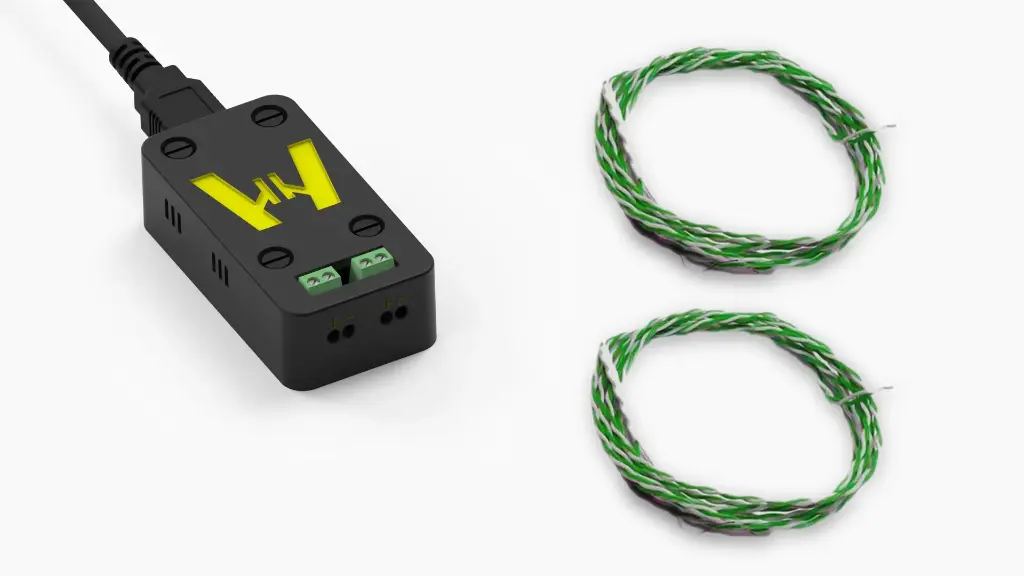

- Temperature Sensor Module with signal conditioner

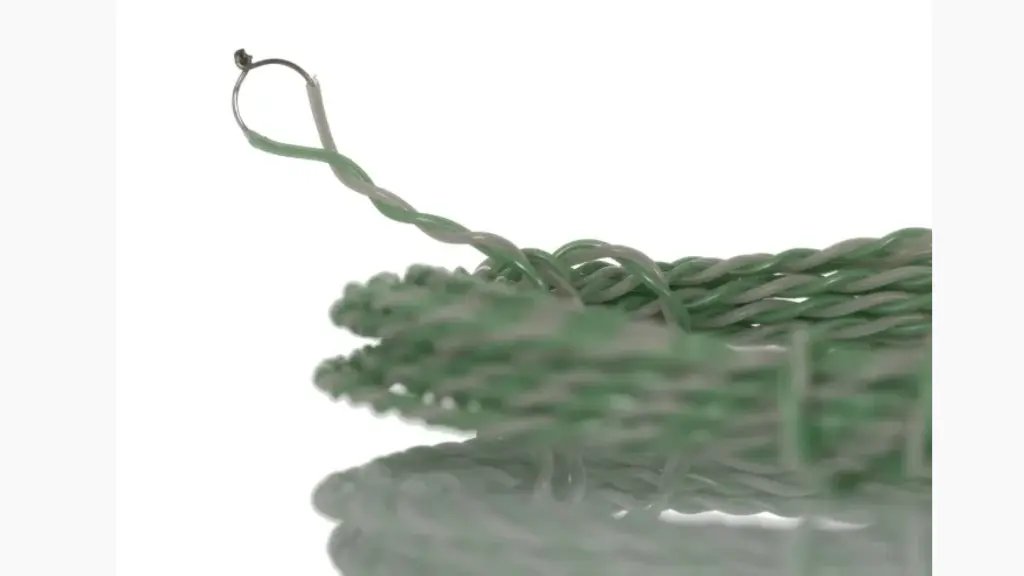

- 2x Type K thermocouples with PFA insulated leads
- USB cable (0.5m)
- Self-adhesive attachment pads for thermocouples
- Data logging software (Omnisense)
